Enhancing Node-Red with GUIDs
Do you have a lot of automation in your house using Node-RED and are you looking for a way to increase the possibility of finding a faulty flow? If yes, follow me as I come up with a solution that might work for you as well.
This is a use case for me. Your mileage may vary. This will take some time.
Anything worth doing is worth doing well.
Background
So let me explain the problem and see if this sounds familiar. I use Node-RED A LOT along with Home Assistant. I made the decision a long time ago that the automations built into Home Assistant and the YAML engine was not for me. Please note that was quite a while, probably 5 or 6 years ago - the automation interface in Home Assistant is so much better now, however I am heavily invested in Node-RED and will not be going back anytime soon.
So what is the problem?
I have a lot of flows and nodes in my environment. I make heavy use of links and try to centralize as much as possible and use links (link in and link out) to ensure that the actions I perform are consistent. When you get to the size of my installation (over a 100 flows), troubleshooting and figuring out erratic or intermittent issues can be challenge. With all the wiring and multiple nodes and linking and multiple condition checking - it can become overwhelming to figure out where the problem starts and ends.
How did I fix this?
I have spent time and this will be an on-going process to add GUIDs (yes, those long 32 digit things that are now everywhere) and simple use of a subflow. The subflow I created is simply used right at the beginning of my flow and its Globally Unique IDentifier now allows me to at least back-track to the start of the problematic flow and if the debug nodes returns more than 1 GUID that is also helpful.
So a simple enough change, but time-consuming to implement.

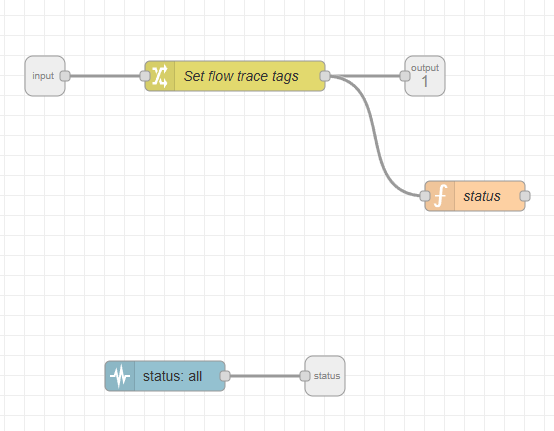

Here is the export of my subflow - feel free to use it.
[{"id":"f44cf6f9b8f814e3","type":"subflow","name":"Flow Trace Tagger (1)","info":"Adds msg.flow_origin and msg.flow_trace for debugging and traceability.\nSet the environment variable TAG_NAME when using this subflow.","category":"","in":[{"x":60,"y":80,"wires":[{"id":"6c2c2c6e8e2f886c"}]}],"out":[{"x":440,"y":80,"wires":[{"id":"6c2c2c6e8e2f886c","port":0}]}],"env":[{"name":"TAG_NAME","type":"str","value":""}],"color":"#FFD580","status":{"x":340,"y":380,"wires":[{"id":"0df253ebbfe15d99","port":0}]}},{"id":"6c2c2c6e8e2f886c","type":"change","z":"f44cf6f9b8f814e3","name":"Set flow trace tags","rules":[{"t":"set","p":"flow_origin","pt":"msg","to":"$env('TAG_NAME') != '' ? $env('TAG_NAME') : 'Unlabeled Flow'","tot":"jsonata"},{"t":"set","p":"flow_trace","pt":"msg","to":"$now() & ' - ' & ($env('TAG_NAME') != '' ? $env('TAG_NAME') : 'Unlabeled Flow')","tot":"jsonata"}],"x":250,"y":80,"wires":[["363a78cde4fa6638"]]},{"id":"0df253ebbfe15d99","type":"status","z":"f44cf6f9b8f814e3","name":"","scope":null,"x":180,"y":380,"wires":[[]]},{"id":"363a78cde4fa6638","type":"function","z":"f44cf6f9b8f814e3","name":"status","func":"//var date = new Date();\n//var dateTime = date.toLocaleString(); // Format the date and time\n\n// In our `msg.payload` the `title` attribute contains the name of the game.\nvar statusText = msg.flow_trace;\n\n// `node.status` will display the actual status below your function node using\n// the data you provide here.\nnode.status({ fill: \"blue\", shape: \"ring\", text: statusText });\nreturn msg;\n","outputs":1,"timeout":0,"noerr":0,"initialize":"","finalize":"","libs":[],"x":490,"y":200,"wires":[[]]}]

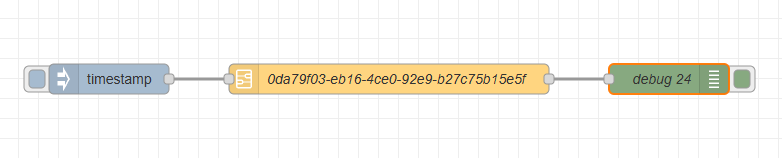

Example flow, this is just a simple example to show how everything stitches together.

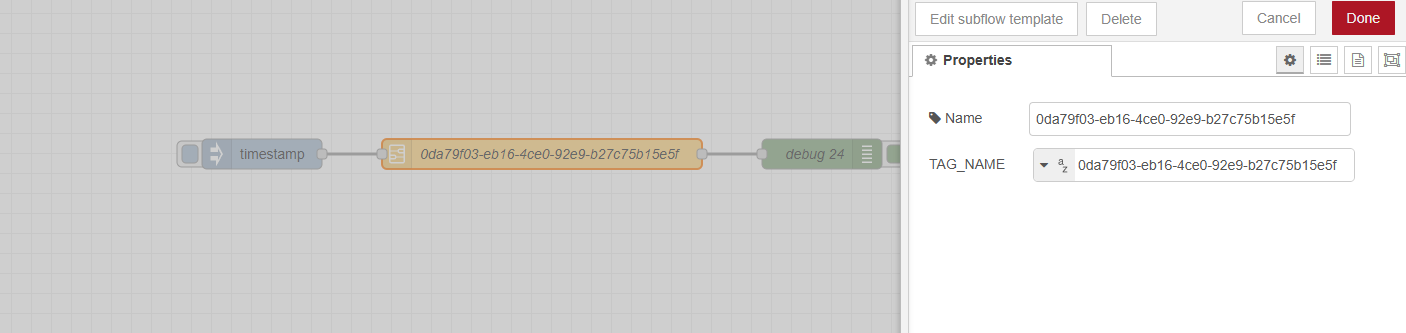

Configuration of sub-flow

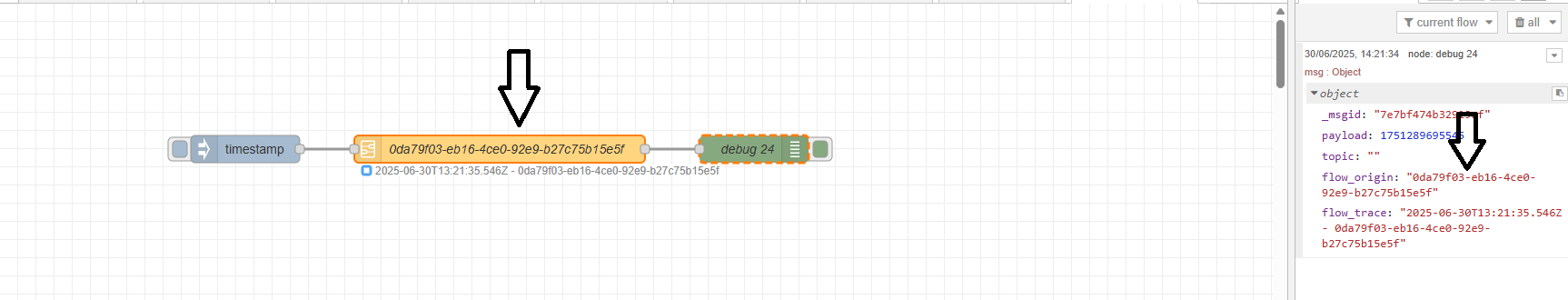

Debug node
Click to view full size
Is it worth it?
Well, that depends on you and how much and effort you want to spend making your automation system resilient, robust and easy to troubleshoot.
For me, absolutely YES
